Description

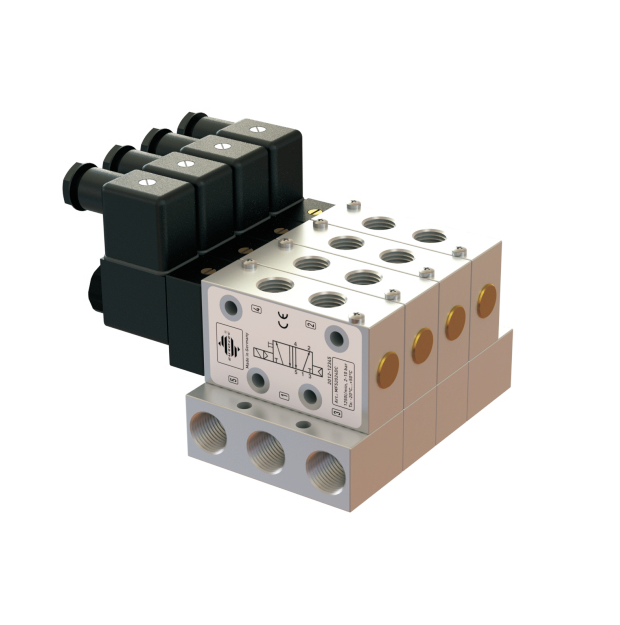

Solenoid valve blocks with 5/2 way function
– The valve blocks combine 2-12 single solenoid vales with 5/2 way function on a modular ground plate
– One single pneumatic connection G3/8″ (port 1) for all solenoid valves
– One single collecting tube for deaeration G3/8″ (port 3 + 5) for all solenoid valves
– Piston spool solenoid valves, indirectly operated, with magnet coil and
connector with exit M16 for cable diameter 5-6mm
– Air spring return or bistable execution
– Standard self-locking brass manual override
– Body anodised aluminum, Inner parts brass and plastic
– Stainless steel piston AISI 303, NBR Sealings, Stainless steel screws AISI 304
– Media: Cleaned and lubricated or non-lubricated compressed air with
a quality level 5 according to ISO 8573-1
– Application: Control of double acting pneumatic actuators or cylinders
Option:
2,3,4,5,6,8,10 or 12 valves.
Technical features:
Air entry series plate: G 3/8”
Air entry valve: G 1/4″
Dimension: 7mm
Air pressure: 2-10 bar
Temperature: -20°C … +50°C
Enclosure: IP65
Voltage:
DC: 12V, 24V
AC: 24V, 48V, 115V, 230V
Power consumption: DC: 3W / AC: 5VA
Air flow: 1250 l/min
