Description

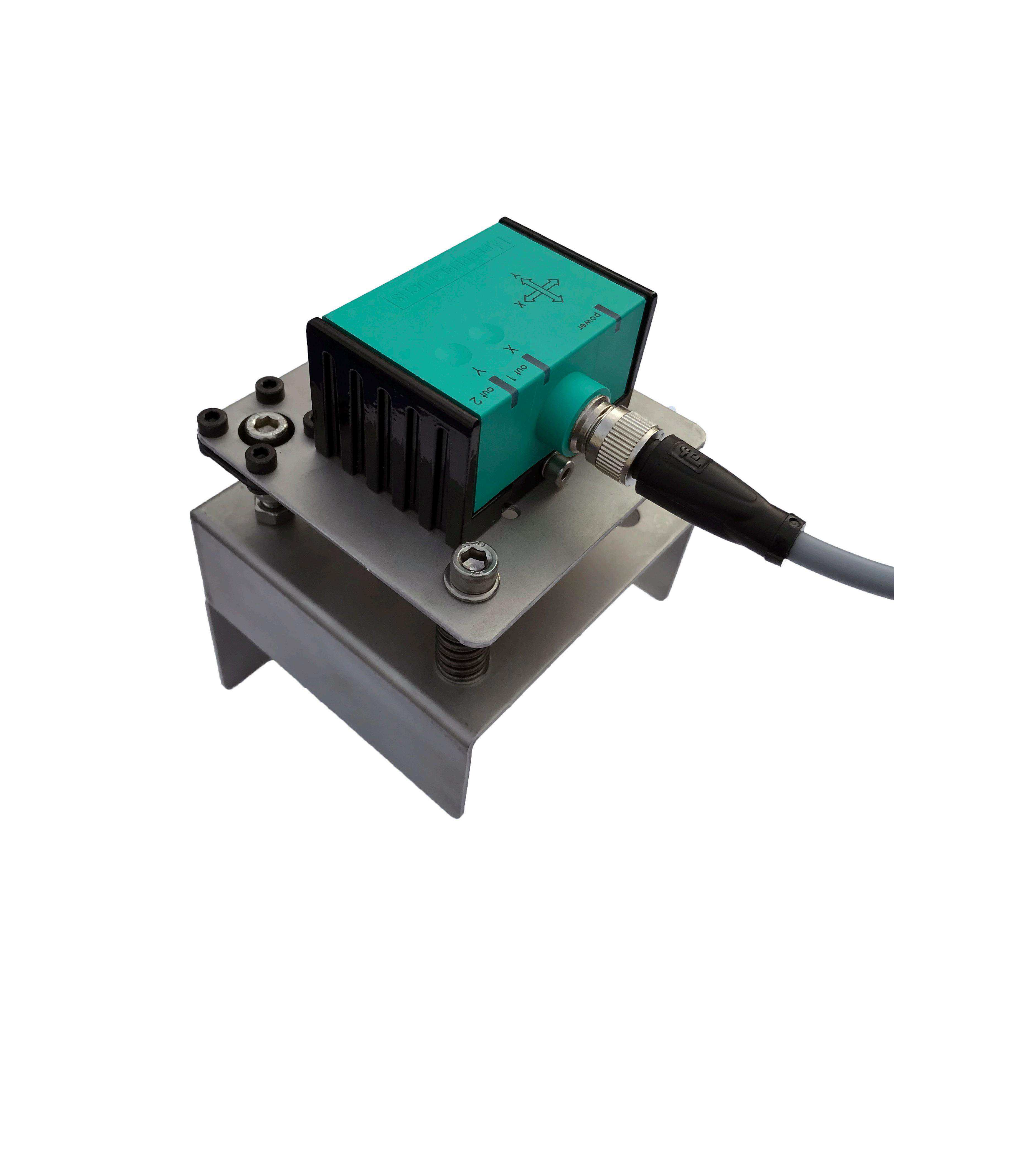

Marine Inclinometer
The inclinometer unit is an electronic angle measurement system, intended to Trim and Heel
measurements onboard any vessel. The angle measurement is performed upon the signal from
a solid state gravity sensor. This signal is amplified, and converted into 4 – 20 mA standard loop.
Mount the box or unit longitudinal or across.
PART NO: 165B2006
Features
-
- E1-Type approval
- Measuring range -15° to +15°
- Analog output 4 mA to 20 mA
- Fixed evaluation limits
- High shock resistance
- Increased noise immunity 100 V/m
