Description

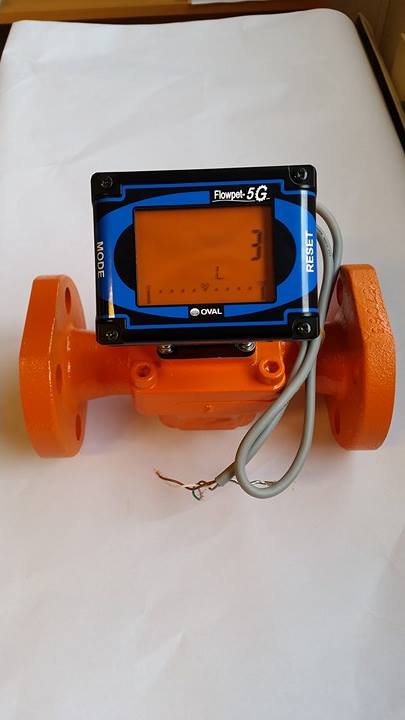

OVAL FLOWPET-5G
FLOWPET-5G is an OVAL flowmeter primarily intended for use in boiler feed water and fuel oil metering applications. Field proven accuracy and long life along with the best price/performance and ease of use makes this industrial meter ideal as a dedicated tool for heat control.
Model LS5276-530A:
- Dimension: 25 mm JIS 10KFF
- Materials: House: Cast Iron
- Rotors: Special resin
- Max temperature: 120℃
- Flow range: 150-3600 l/hour
- Accuracy: +/-0.5 % RD
- Flowdirection: Right to left
- Pressure rating: 10 bar
Register Unit:
- LCD display: 7-segment, 8-digit with 14mm characters, unit display, low battery alarm, and flow indicator (10-segment)
- Power source: Lithium battery or external power source.
• Lithium battery: 3.6V dedicated battery pack, Battery life: 8 years (varies with operating conditions), Storage life: 10 years
• External power source: 12 to 50VDC±10% (Pulse output: Current capacity 10mA or more, Analog output: Current capacity 30mA or more - Display item: Total flow, instantaneous flow rate ([/h] or [/min]), and resettable total flow
- Output signal: Open collector, Allowable current: 20mA, Max. voltage applied: 30V.
Analog output: 4 to 20mA - 4 kinds of output specifications available:
pulse output, analog output, alarm output, and
analog+pulse/alarm output
Replacement for: LS5276-430A
