Description

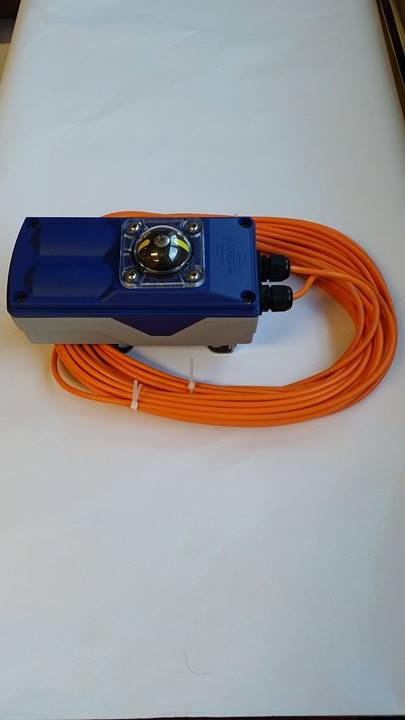

EUROBOX – Long plastic housing
– Compact and flexible limit switch box made of polyamide PA6 (Housing: RAL7040 / Cover: RAL5010)
Optional: 3D or 3D1 indicator dome, closed cover, OPEN-CLOSED indicator below the box
– Adjustable stainless steel mounting bracket MBHV (AISI 304) for simple assembly
on actuators according to VDI/VDE 3845:
Hole spacings: 80x30mm and 130x30mm (optional: 50x25mm)
Shaft heights: 20, 30, 40 and 50mm
– Enclosure IP67 according to DIN EN 60529
– Cable gland M20x1,5 black (for cable Ø 6-12mm)
– Additional connection thread M20x1,5 for second cable gland as standard
– Sealings TPE and NBR, Screws AISI 304, Shaft stainless steel AISI 303
– Other colours of casing available on request
– Application: Standard applications without explosive atmosphere.

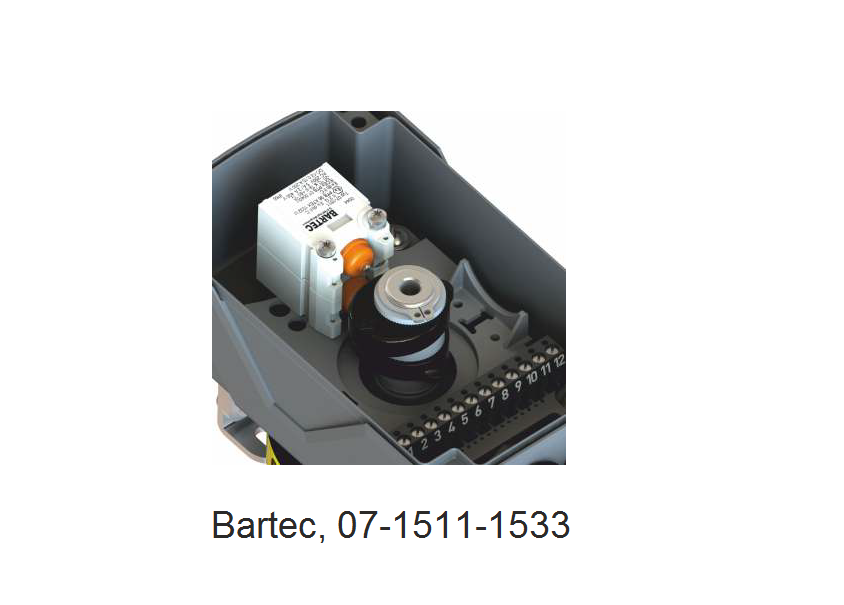

1-4 mechanical switches or proximity sensors in V3 design
1-3 slot type sensors

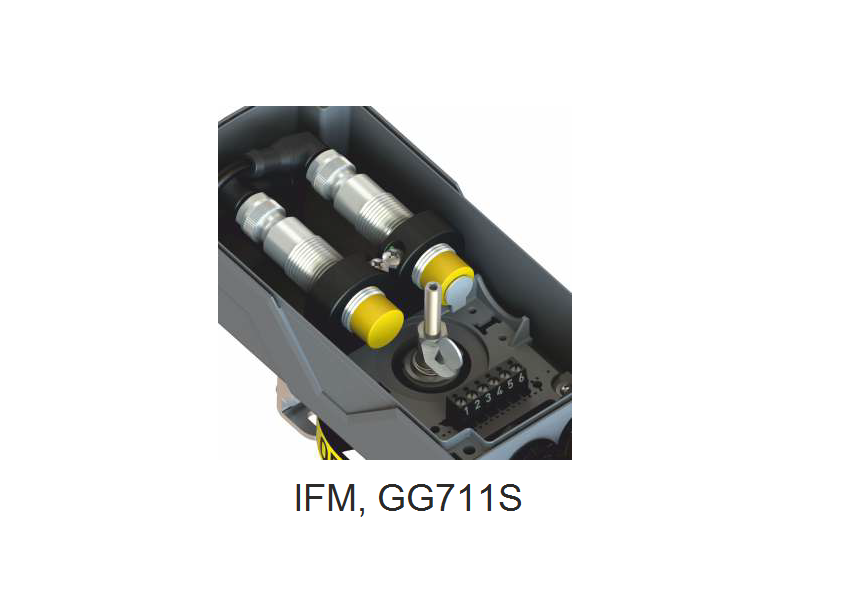

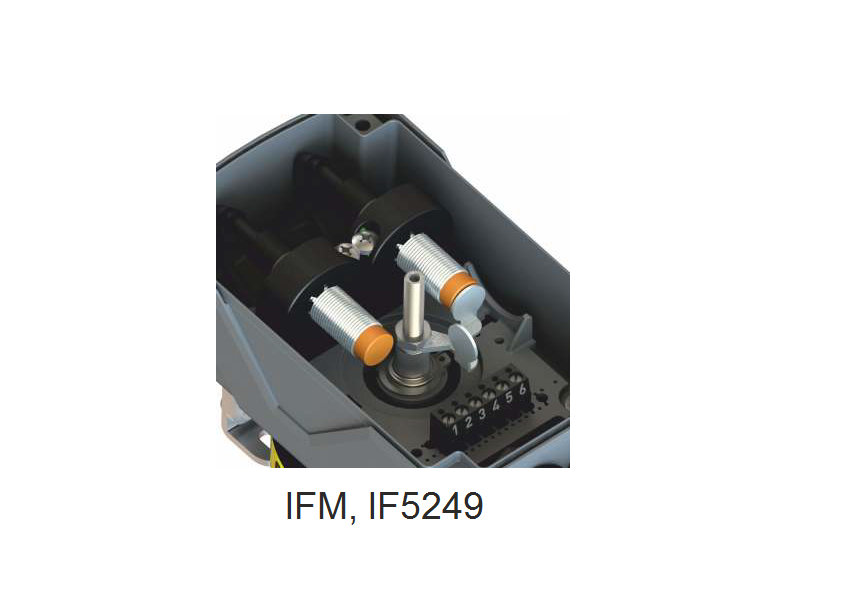

1-2 cylindrical sensors Ø 8-18mm
